Ascent Installation Guide
Determine your installation location

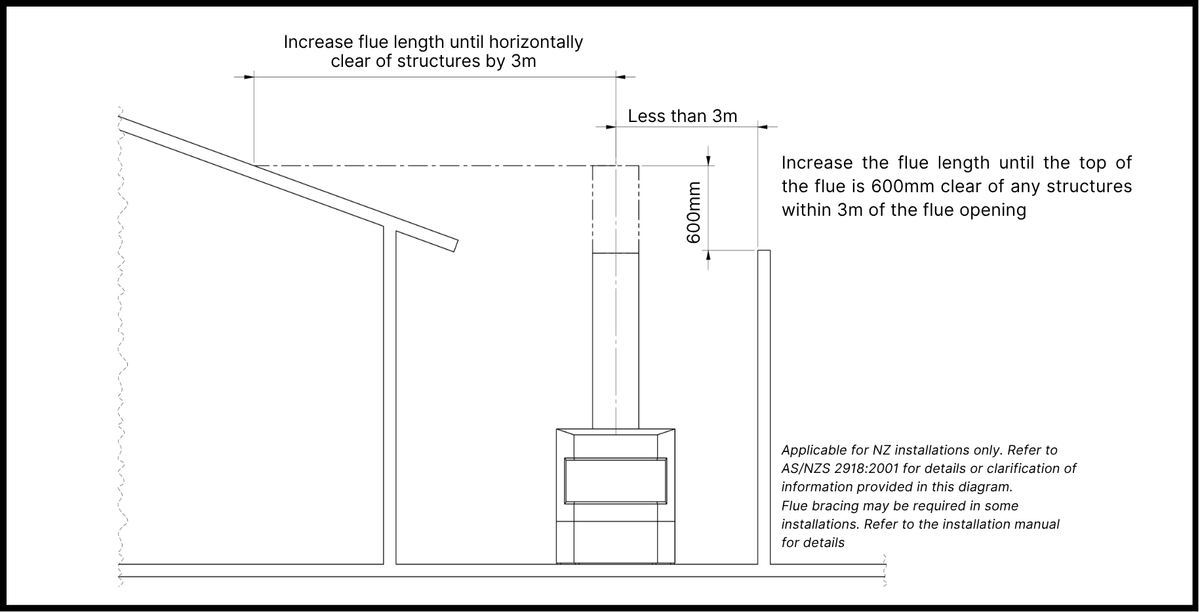

Correct positioning is essential for the safe operation of your outdoor fireplace. Ensure the fireplace maintains the required minimum clearances from combustible surfaces and that the flue terminates at a sufficient height for smoke to disperse safely.
Use the minimum clearances shown below to help determine a suitable location. Refer to the installation manual and AS/NZS 2918 for complete installation requirements and additional guidance.

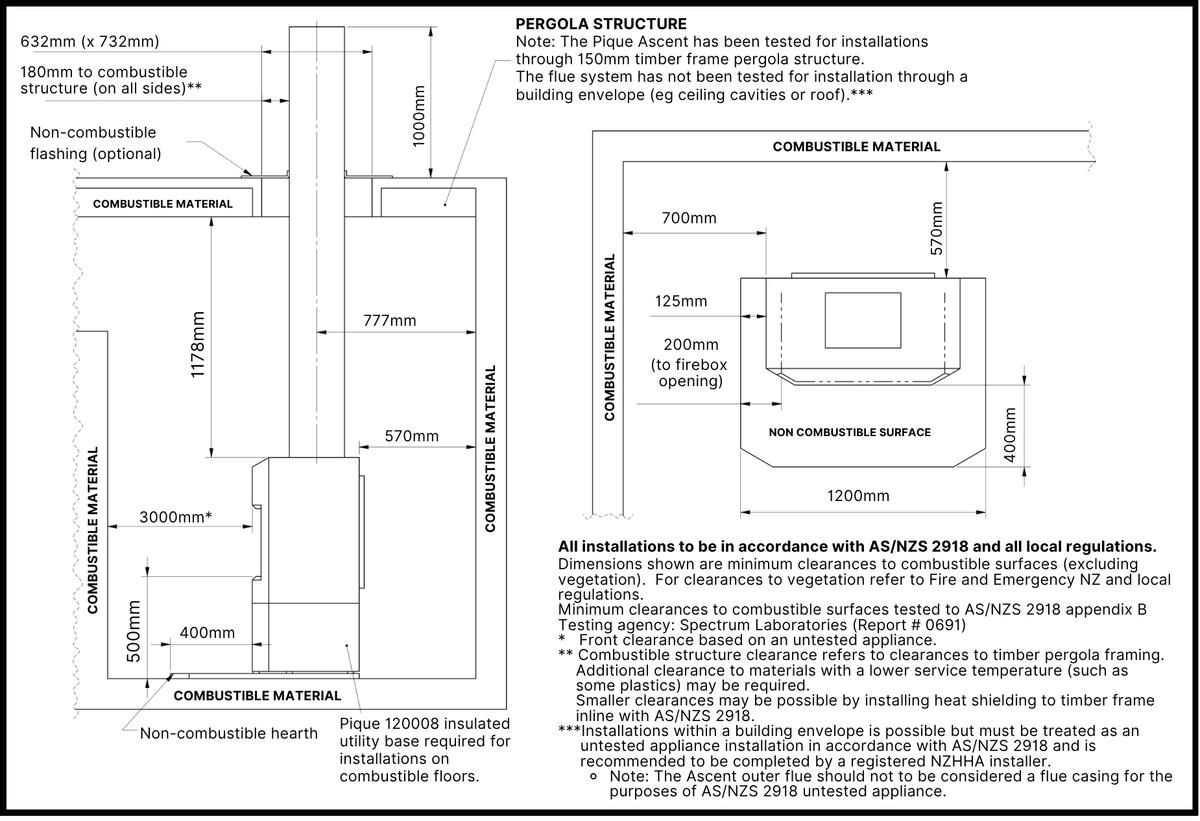

Minimum Clearances to Combustible Surfaces

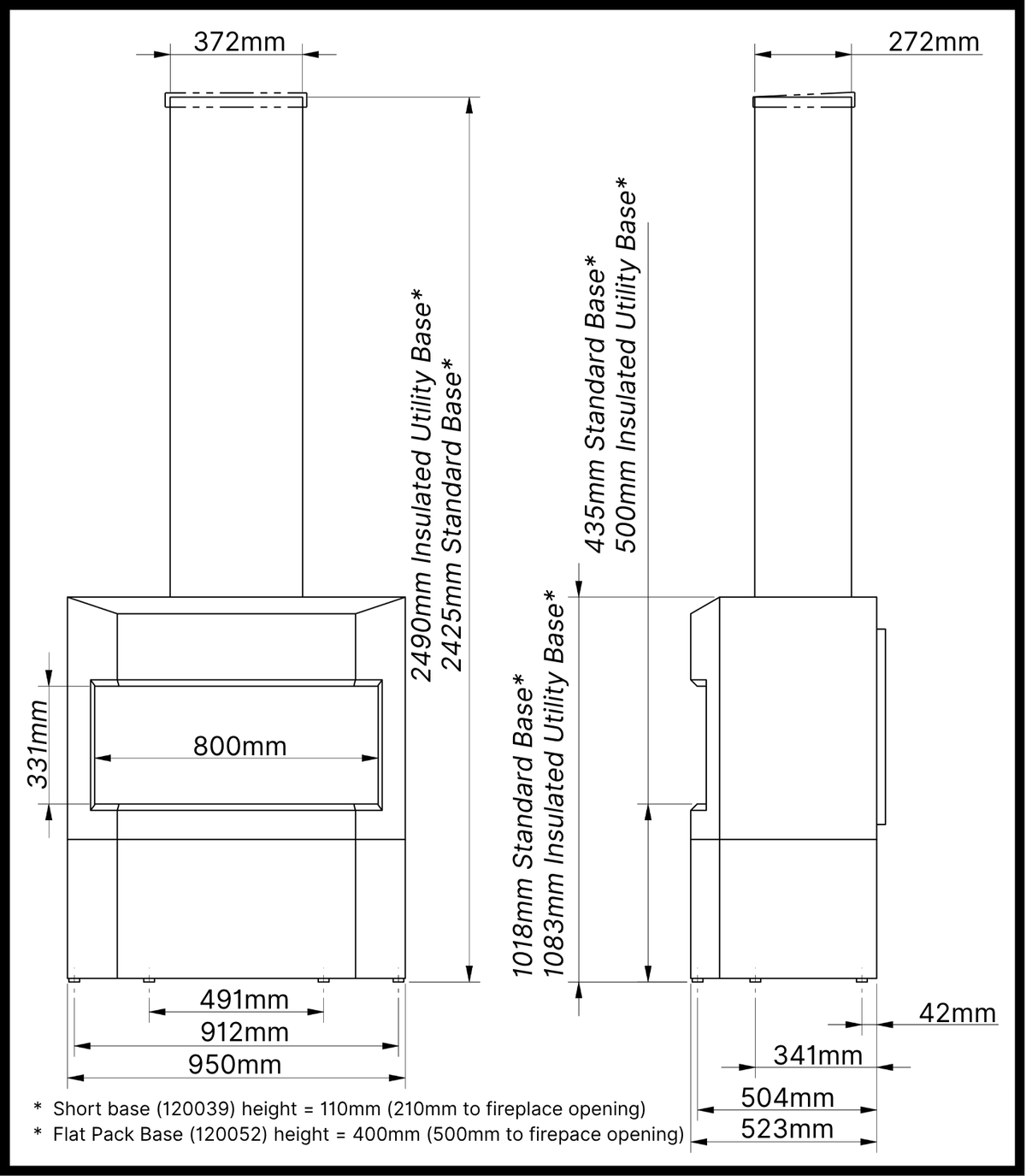

Ascent Dimensions
Accessories
Determine Accessories
Use the guide below together with the minimum clearance requirements for combustible surfaces to determine which accessories your installation requires.
Refer to the Ascent Operator and Installation Guide for complete requirements and additional guidance.

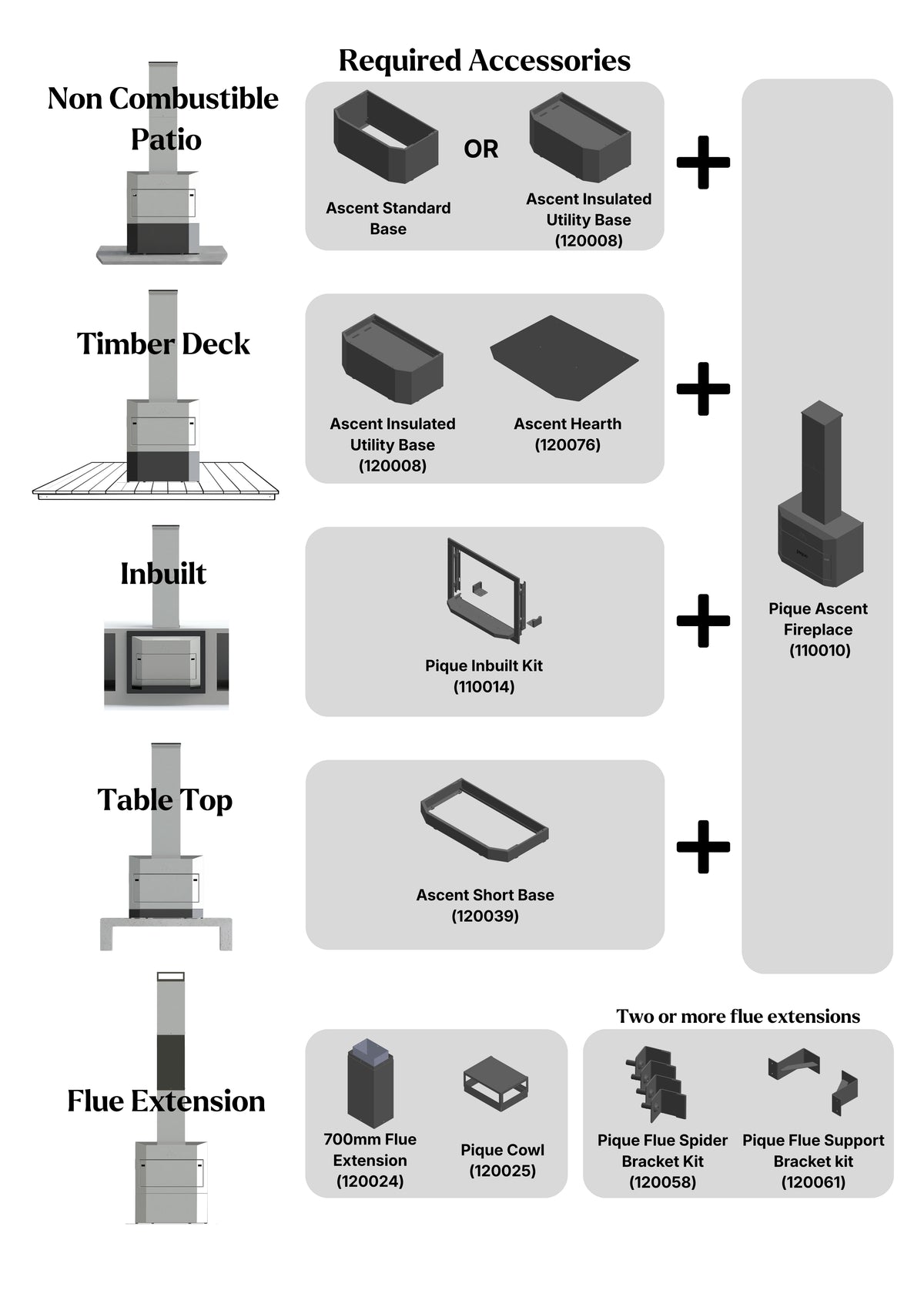

Required Accessories
Technical Downloads
Download Ascent Installation and Operators Guide
Download Manual
Download Inbuilt Assembly Guide
Download Manual
Download Insulated Utility Base Assembly Guide
Download Manual

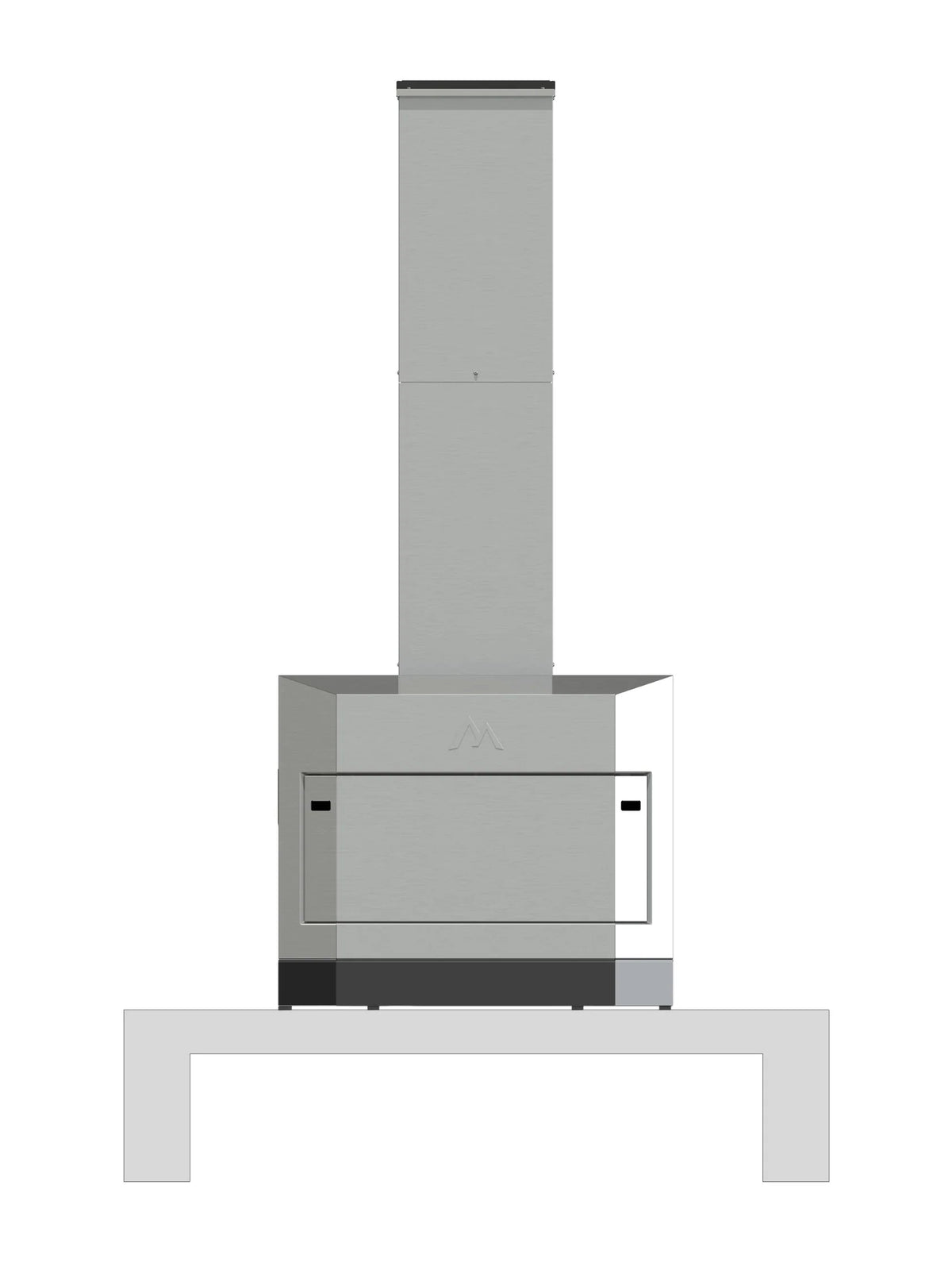

Download Short Base Assembly Guide
Download Manual
